Spare parts, wisselstukken, pièces de rechange


due to the very many versions we made, please specify all the description of the name plate, included the SERIAL NUMBER.





CONNECTION
----------

standard connexion box and accessories (more)
standard terminal material (more)

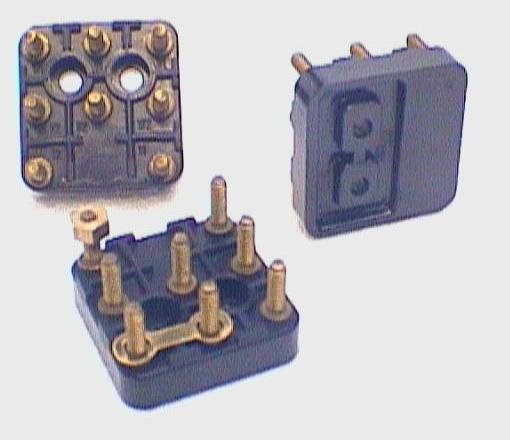

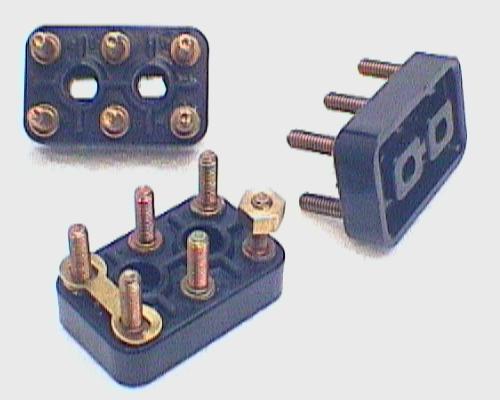

other terminals M4 15mm 6 screws (code:KB6) picture 8 screws (code:KB8) picture



FANS
----

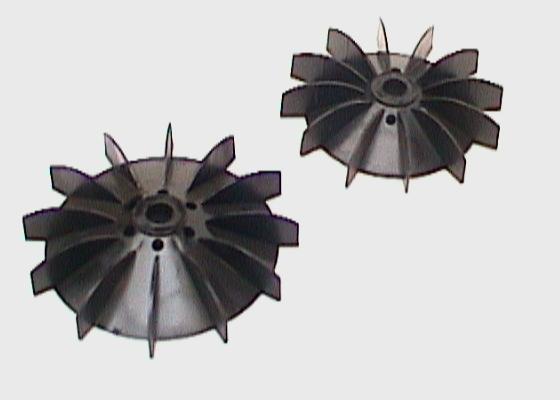

fan, plastic, small and large, code pv & PV picture
fan, plastic, with screws, hole 14mm, code VV14
fan, plastic, with screws, hole 19mm, code VV19
fan, aluminium, code AV

fan cover, ventilator kap, coiffe de ventilateur, Lüfterhaube
----------------------------------------------------------------

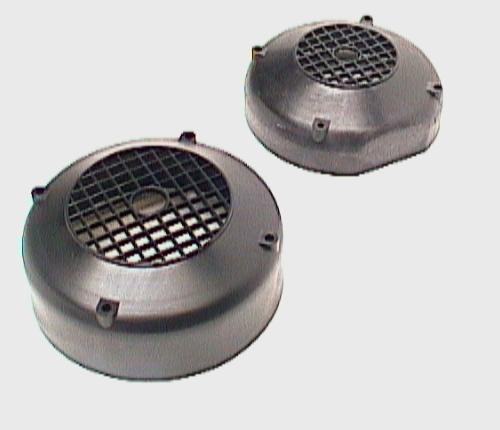

fan cover, plastic, small and large, code pk & PK picture
fan cover, aluminium, hole 24mm, code AK24 picture

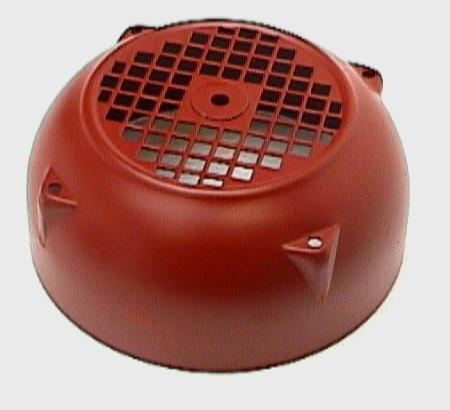

fan cover, steel, small, code fk picture
fan cover, steel, large (for brakes, acessories...),code FK

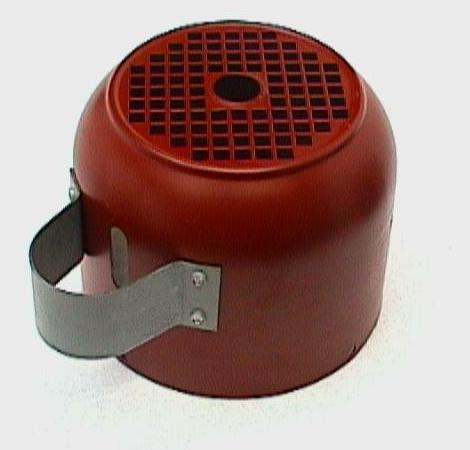

with hendle guard and hole 24mm: code FKB24 picture




SILENCE DEVICES
---------------

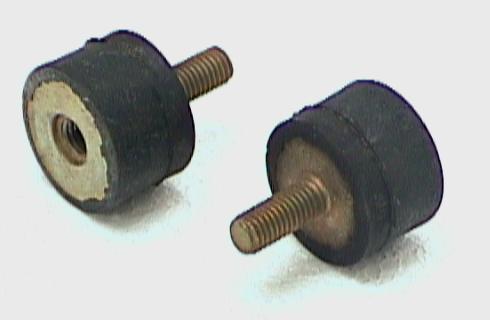

silent blocks for R models (Resiliant base), M8 picture

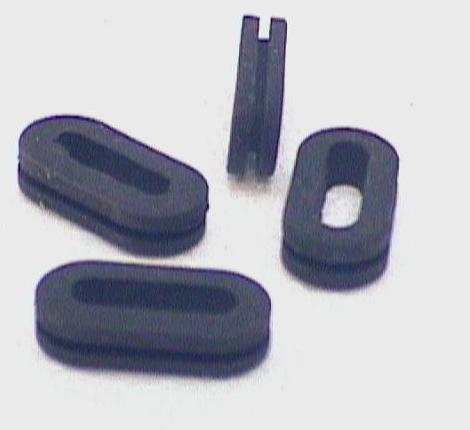

rubber cushions for NEMA foot hole (code: RuTD) picture




BEARINGS
--------

bearings 6202,6203,6204,6205(dimensions)
all 2RS versions optional 2RSC2 freewheel bearing (more)

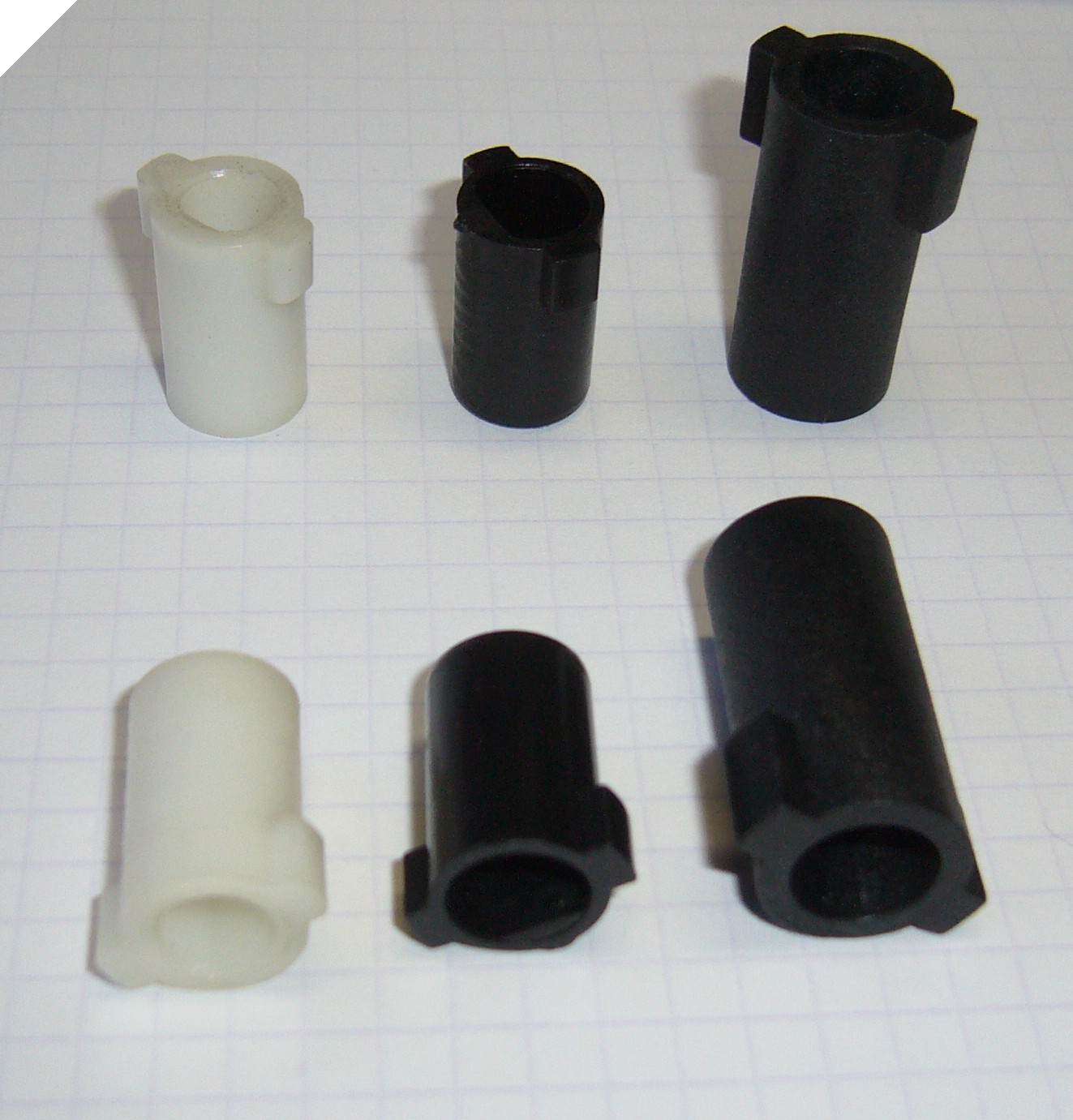

pump coupling, pompkoppeling, accouplement pour pompe, Pumpkupplung
-------------------------------------------------------------------

OPK8-12:external diameter 12mm, internal diameter 8mm (with flat)
OPK10-12:external diameter 12mm, internal diameter 10mm (with flat)
OPK10-15:external diameter 15mm, internal diameter 10mm (with flat deeper inside)
picture for the above 3

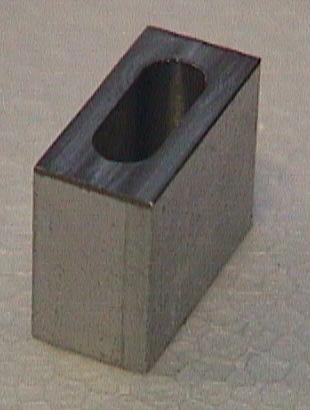

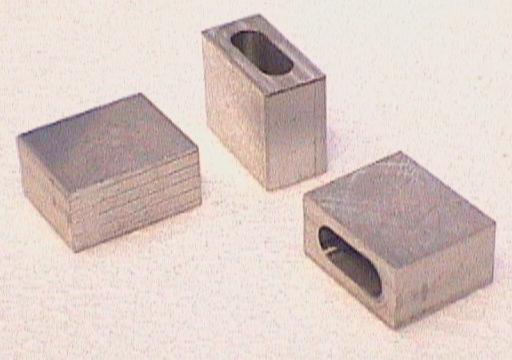

in aluminium
accouplement aluminium koppeling
aluminium coupling

in vulkolan


BRAKE PARTS, FREINS, REMMEN
---------------------------------

brake stator, stator de frein, rem stator

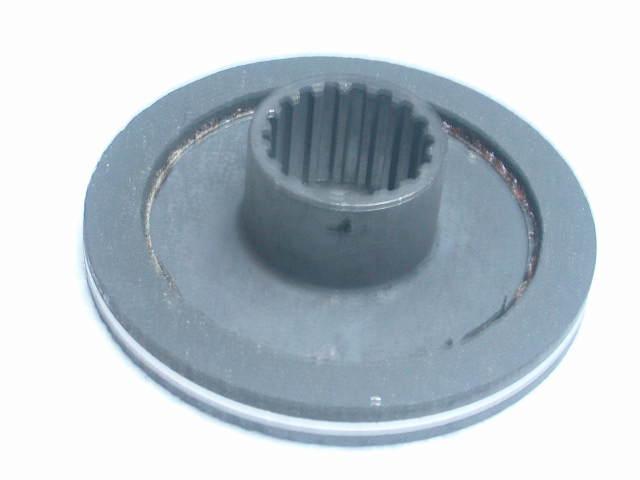

brake rotor, rotor de frein, rem rotor brakerotor

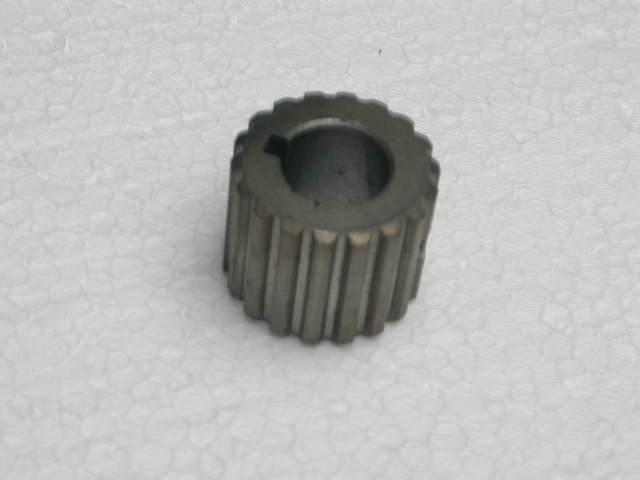

hub, moyeu, naaf brakehub

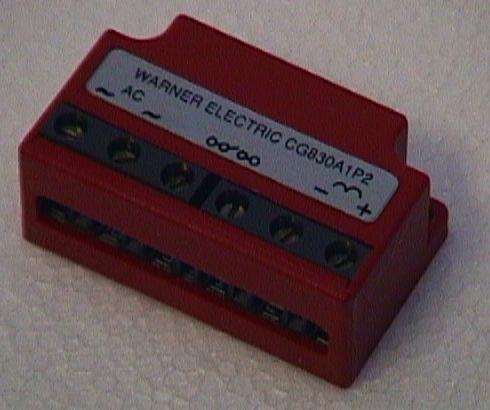

rectifier for brake, full bridge, 6 screws picture

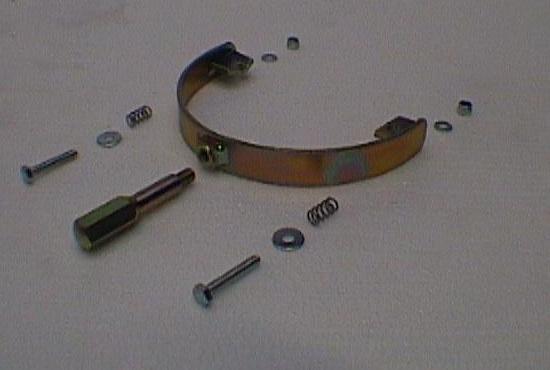

manual brake release spares set (code:RE10MRAS for 10Nm brake, RE20MRAS for 20 Nm) picture

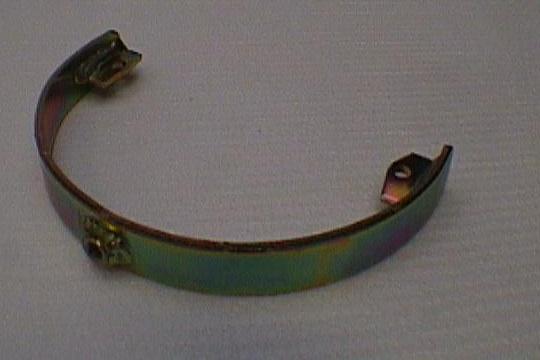

yoke for manual brake release (code:REGA10 for 10Nm brake, REGA20 for 20 Nm) picture

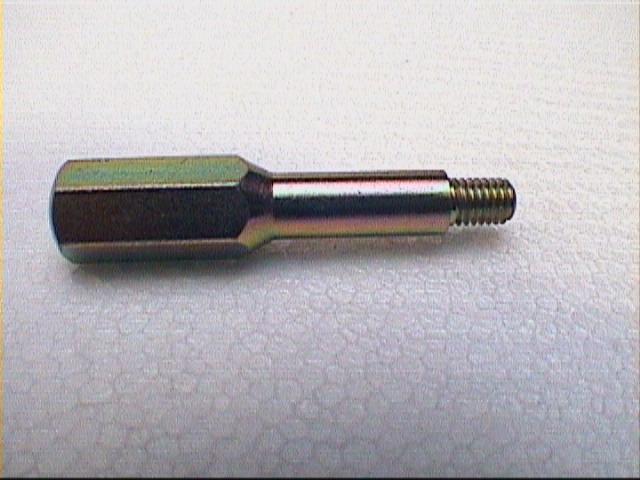

hendle for manual brake release (code:REHE) picture




CAPACITORS CONDENSATEURS CONDENSATOREN
---------------------------------------

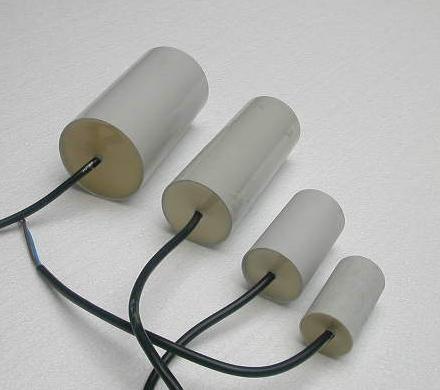

runcapacitors, condensateurs de régime, bedrijfscondensatoren picture
4µF 5µF 6µF 8µF 10µF 12µF 16µF 20µF 25µF 30µF 40µF 60µF 70µF 400V
130µF 200V

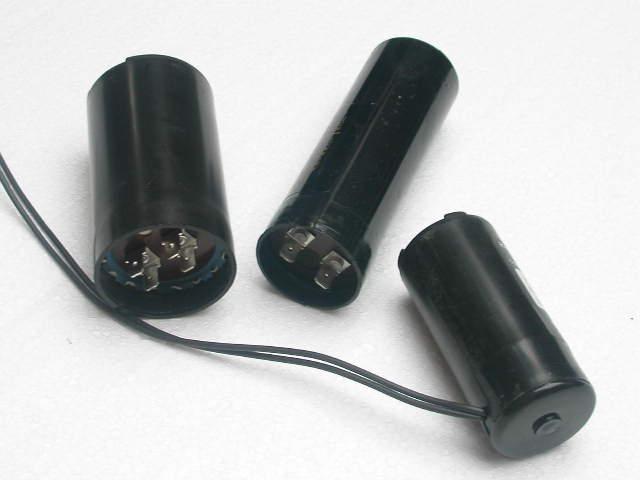

startcapacitors, condensateurs de démarrage, startcondensatoren picture
35µF 40µF 50µF 60µF 60µF 100µF 135µF 200µF 275µF 400µF
250V 320V 250V 250V 320V 320V 130V 250V 150V 190V


consult us for other values


THERMAL PROTECTIONS, PROTECTIONS THERMIQUES, THERMISCHE BEVEILIGINGEN

----------------------------------------------------------------------
K (klixon) manual reset : klixon
protection thermique à bilame : ouverture du contact à 100°, 120°, 135°, 150°

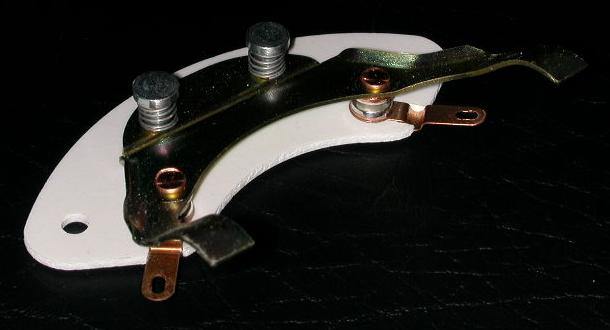

CENTRIFUGAL SWITCH, INTERRUPTEUR CENTRIFUGE, CENTRIFUGALE SCHAKELAAR
---------------------------------------------------------------------

electric contact part ( picture)
centrifugal actuating part
ring of the above part


VIJZEN VISSERIE
---------------

DIN 1587 M6
DIN 1587 M5
DIN 917 M5 (inox/ verzinkt zingué)

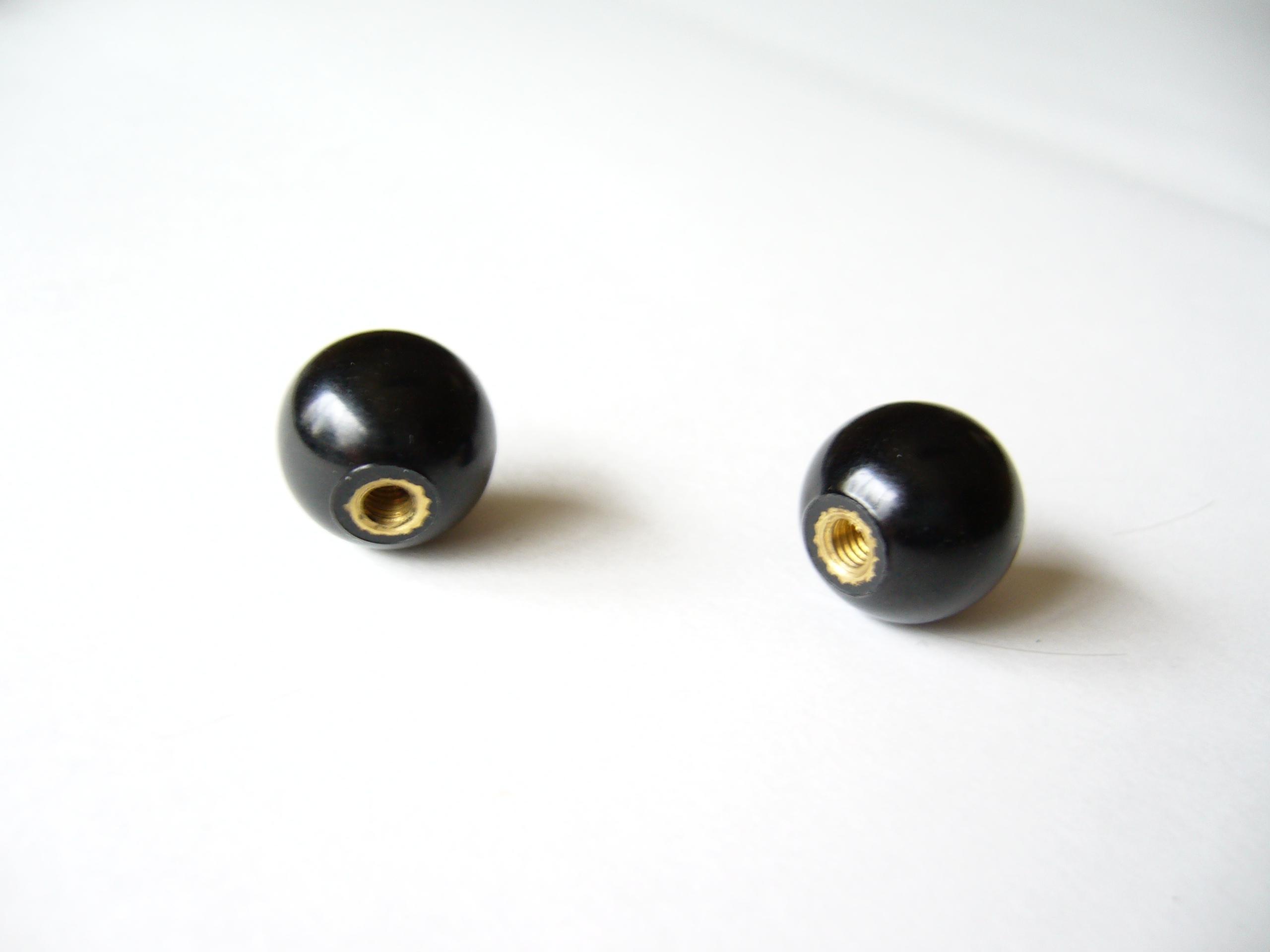

bol met getapt gat, boule avec trou taraudé, ballgripnut DIN319 E M4 x 16 mm diameter knob M4





ALLERLEI DIVERS
---------------

adhesive sticker with arrow for rotation sense
autocollant avec flèche pour indiquer le sens de rotation
zelfklever met pijl om draairichting aan te duiden


ELECTRONISCHE COMPONENTEN COMPOSANTS ELECTRONIQUES
--------------------------------------------------

wirewound resistor 5.6 Ohm 5% 4x22mm Sfernice RB61-4x22
VDR 250V diam:7mm
