Oilburners Models
For dimension please ask our data sheet about oilburners.
Flanges are NEMA flanges and shafts are mostly 1/2 or 5/8 inches.
Special executions are always possible.

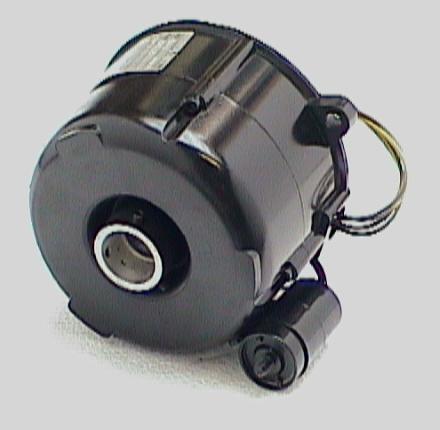

OLP32 motor with diametre 32mm pumpfitement on one side and shaft and flange (172mm between holes) on the other side.
(see picture)

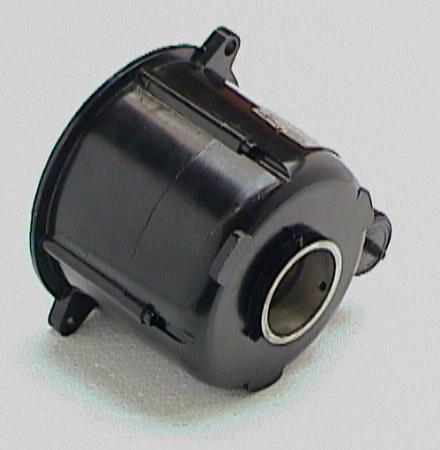

OLP54 motor with diametre 54mm pumpfitement on one side and shaft and flange (172mm between holes) on the other side.
(see picture)

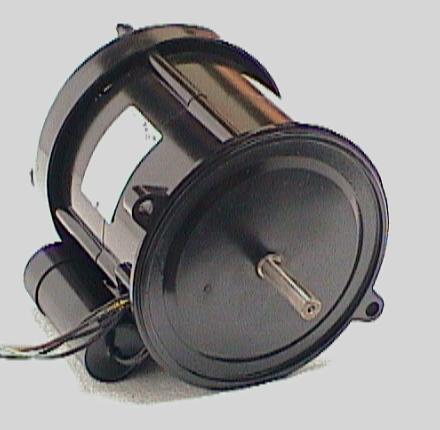

ONV motor with fan on one side and shaft and flange (184mm between holes) on the other side.
(see picture)

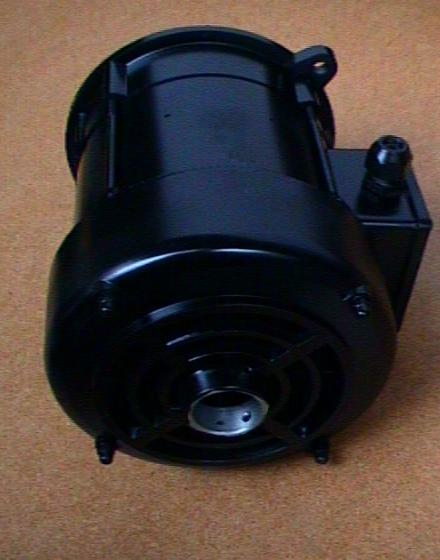

The possibility exists to have a pumpfitment placed on the fan cover.
(see picture)
